Touch Latches
Push-Push Latches

All latch assemblies are precision-machined in the USA and consist of Mil-spec anodized, non-corrosive alloys suitable for aerospace and marine interiors. Each completed assembly is tested for fit, form and function prior to shipment. Material test reports and process certifications are maintained on file.

Touch latches
Secondary latches
Pushers
Hinges
Cup holders





TL 1166-P
Mini Touch Latch

with Built-in Pusher



- Pusher inhibits inadvertent release and reduces vibration
- 0.06” travel to open/close
- 200+ lbs static load
- suitable for aviation and marine environments
- strike available in two styles per drawing
- strike shown Part No. 1012

Specification Drawing TL1166-P
Load Data TL1166-P
(Get Acrobat Reader)






Industrial Touch Latch (Magnetic)

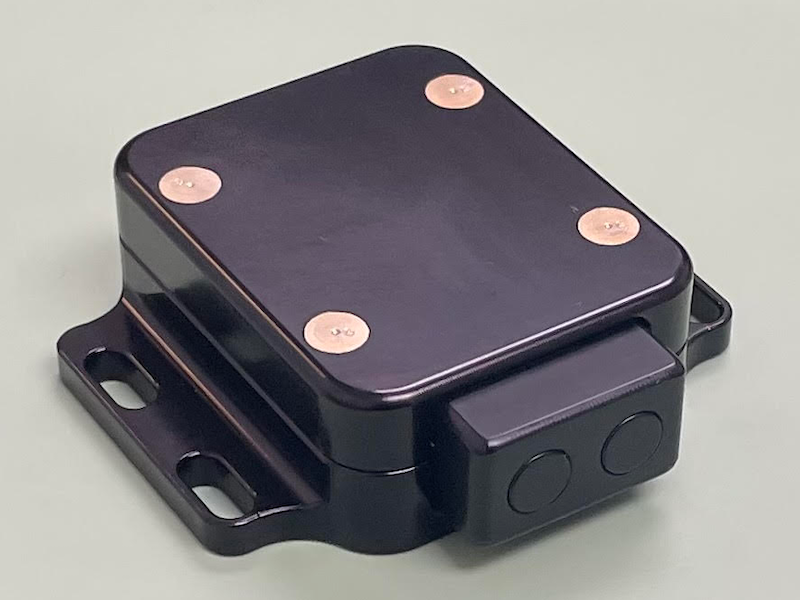

Part No. 20125LP

-10 lbs force opens large doors
-1-1/4” bolt extension
-2 mm travel required to release
-Black anodized finish
-Strike plate included

For more information about this latch click here

Specification Drawing
(Get Acrobat Reader)




20125LP



20075LP
Magnetic Touch Latch

- 6 lbs compression spring force
- 3/4” bolt extension
- Available in black
- 0.08” travel to release
- Strike plate included

Specification Drawing
. (Get Acrobat Reader)



20075LP



TL 1150 SMP
High Load Touch Latch

- 400+ lbs. Static load
- Non-corrosive materials
- Ideal for curved cabinets

Specification Drawing
Load Data
(Get Acrobat Reader)

TL1150SMP



TL 860
Medium Load Touch Latch

- 225+ lbs. Static load
- Non-corrosive materials
- Ideal for curved cabinets
- Use with 1012 strike
- May be combined with 1170 pusher/mount plate

Specification Drawing
Specification Drawing for 1012 max load
(Get Acrobat Reader)

TL860 open closed


TL 1170
High-Load Touch Latch Assembly

- 5 or 10 # pusher force
- inhibits inadvertent latch release
- assembly shown includes TL1150 latch; pusher/mount plate and 1157 strike-
- multiple functions w/single installation

Specification Drawing
(Get Acrobat Reader)

tl1170 open



tl1170 closed


1170
Mount Plate w/Pusher

- for use with TL1150 and TL860 Latch
- pusher force 5# or 10#

1170 Mount Plate w/Pusher


TL 1000 RMP
Durable Mini Latch

- 70 lb static load
- maintains alignment
- installs with standard inserts
- assembly includes latch, mount plate, catch

Specification Drawing
(Get Acrobat Reader)

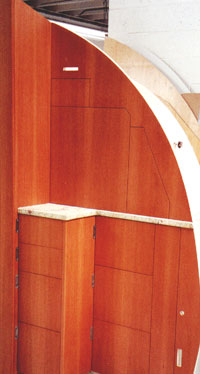

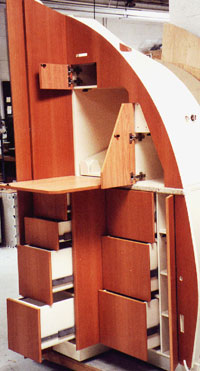

Interior BBJ cabinetry using TL1000RMP mini latches for all applications.
Pearwood cabinets fabricated by Jet Craft Products, Long Beach, CA



TL1000-T
Mini Latch

- 70 lb static load
- non-corrosive components
- maintains alignment - install with catch PN 1012 (not included)
- install with shim (included)

Specification Drawing
Specification Drawing max load
(Get Acrobat Reader)



Continue to Secondary latches page >
