- Material: 7075-T651, QQ-A-225/8
- Finish:
- Standard Finish: Black Anodized
- Optional Finish: Clear Anodized
Concealed Hinge (Mixed Panel)
SH105-A-MIX
Concealed Hinge (Mixed Panel)
SH105-A-MIX

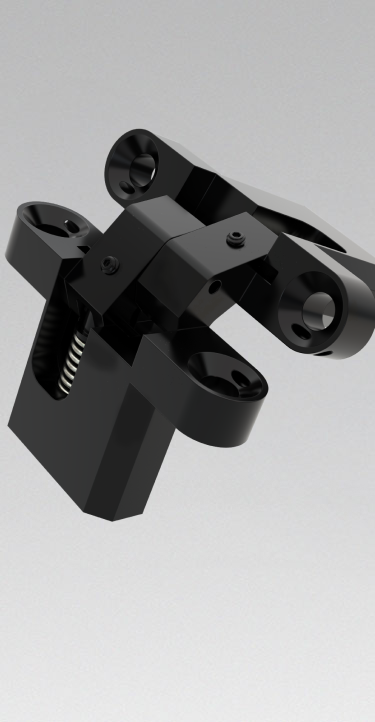

This concealed hinge is designed for mixed panel sizes. The EX side has a compression spring, while the other side is a standard size.
- Adjustable, limited travel
- EX side has compression spring
- Other side is standard size
- Black Anodizedd 7075 aluminum
- Use with lightweight panels only.
- Do not open panel greater than the adjusted travel.
- Install using nas514p832 screw (4x) or equiv.
- Use 0.035″” hex driver to reduce open angle.
- Minimum panel thickness 0.50″
Saint Louis Designs now offers our customers the opportunity to modify our standard designs or develop new mechanisms to meet your hyperspecific requirements. Our manufacturing flexibility and prototyping capability provide our customers with extremely low volume opportunities, often resulting in prototyping project management with extremely quick turnaround.
Saint Louis Designs has improved its ability to accommodate our customers’ high volume production requirements for with greater reliability, quality, and flexibility. Access to 65+ design and manufacturing engineers and over 650,000 square feet of manufacturing floorspace provide our customers with the assurance that SLD can deliver the highest quality hidden hardware and precision mechanisms at scale.
Min. Panel Thickness
0.50"
Modified Precision Hinges
Concealed Hinge (Mixed Panel)
Concealed hinge designed for use with mixed panel sizes, providing a seamless and reliable connection.
