- Material: 7075-T651, QQ-A-225/9
- Finish:
- Standard Finish: Black Anodized
- Optional Finish: Clear Anodized
Concealed Hinge (Standard)
SH105-A
Concealed Hinge (Standard)
SH105-A

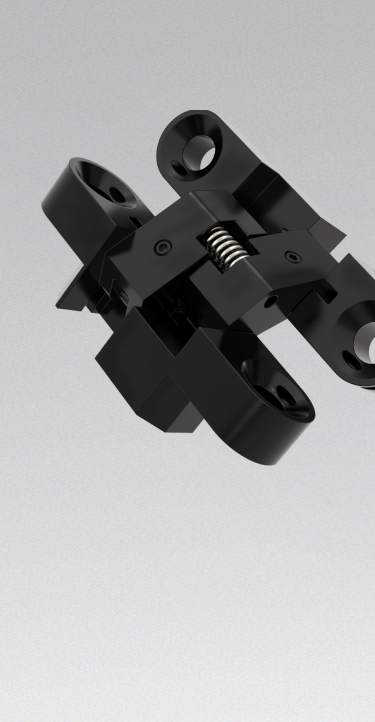

This spring-loaded concealed hinge (1001G size) features limited travel and adjustability. It’s gapped for use with a touch latch and designed for lightweight panels.
- Spring loaded 1001G size hinge
- Limited Travel, Adjustable
- Black anodized 7075 aluminum
- Use the -open model where force is wanted in the open direction.
- Use the -close model for self-closing hinge.
- Install using nas514p832 screw (4x) or equiv.
- Use 0.035″” hex driver to reduce open angle.
- Minimum panel thickness 0.50″
Saint Louis Designs now offers our customers the opportunity to modify our standard designs or develop new mechanisms to meet your hyperspecific requirements. Our manufacturing flexibility and prototyping capability provide our customers with extremely low volume opportunities, often resulting in prototyping project management with extremely quick turnaround.
Saint Louis Designs has improved its ability to accommodate our customers’ high volume production requirements for with greater reliability, quality, and flexibility. Access to 65+ design and manufacturing engineers and over 650,000 square feet of manufacturing floorspace provide our customers with the assurance that SLD can deliver the highest quality hidden hardware and precision mechanisms at scale.
Center-to-Center
1.31"
Travel
90° ±10°
Modifiable Precision Hinges
Concealed Hinge (Standard)
Concealed hinge for a clean and seamless appearance, providing smooth and reliable operation.
