- Material: Various
- Finish: Black Anodized

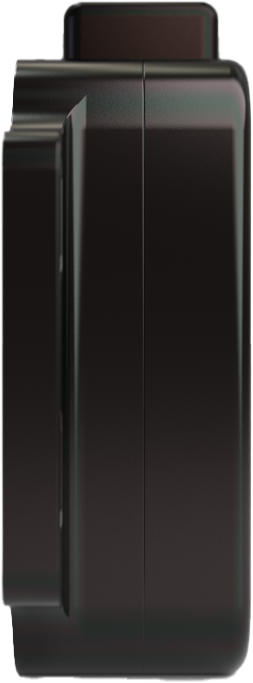

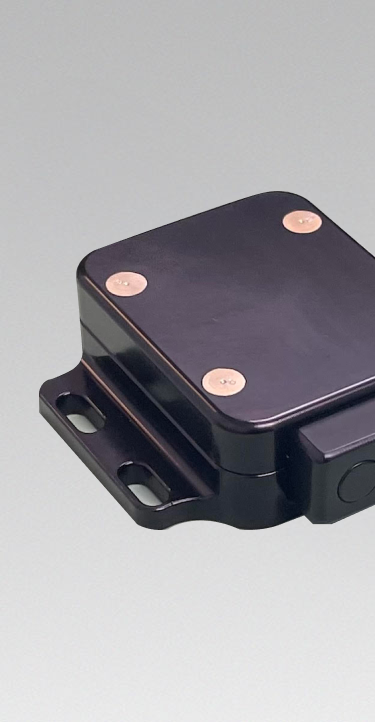

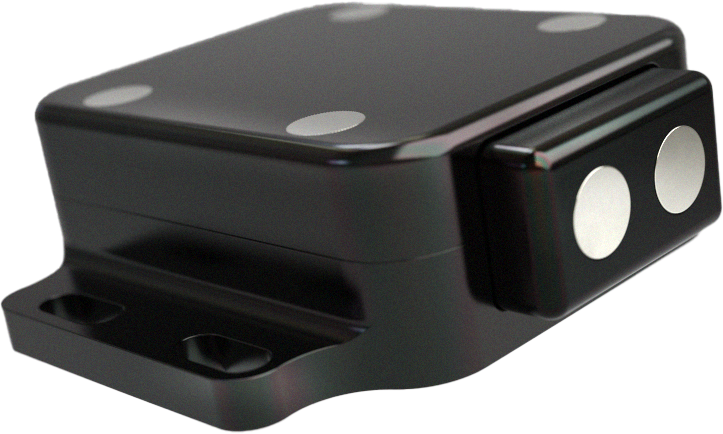

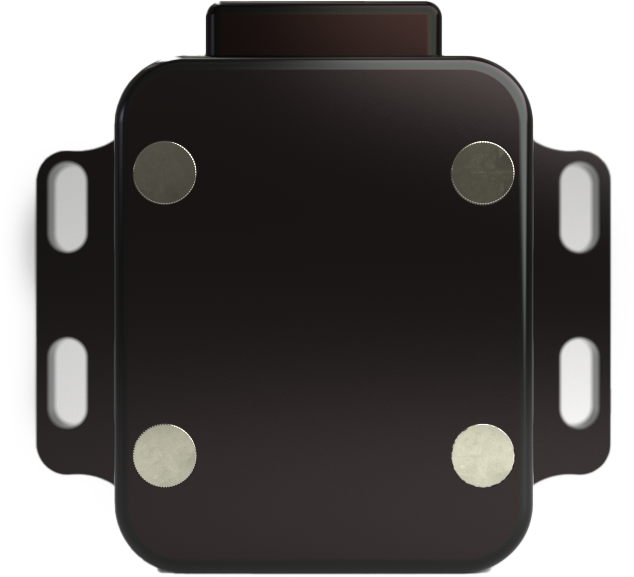

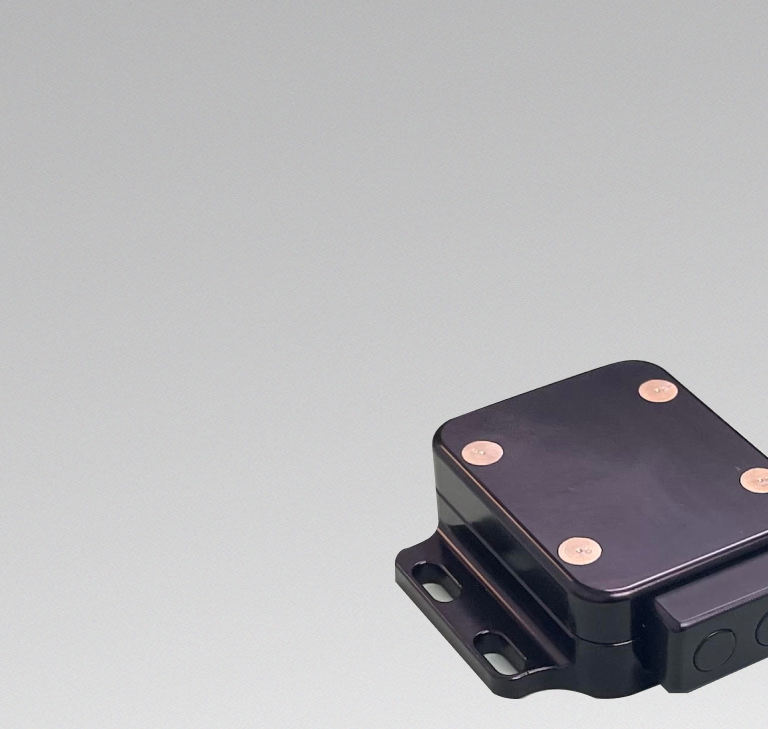

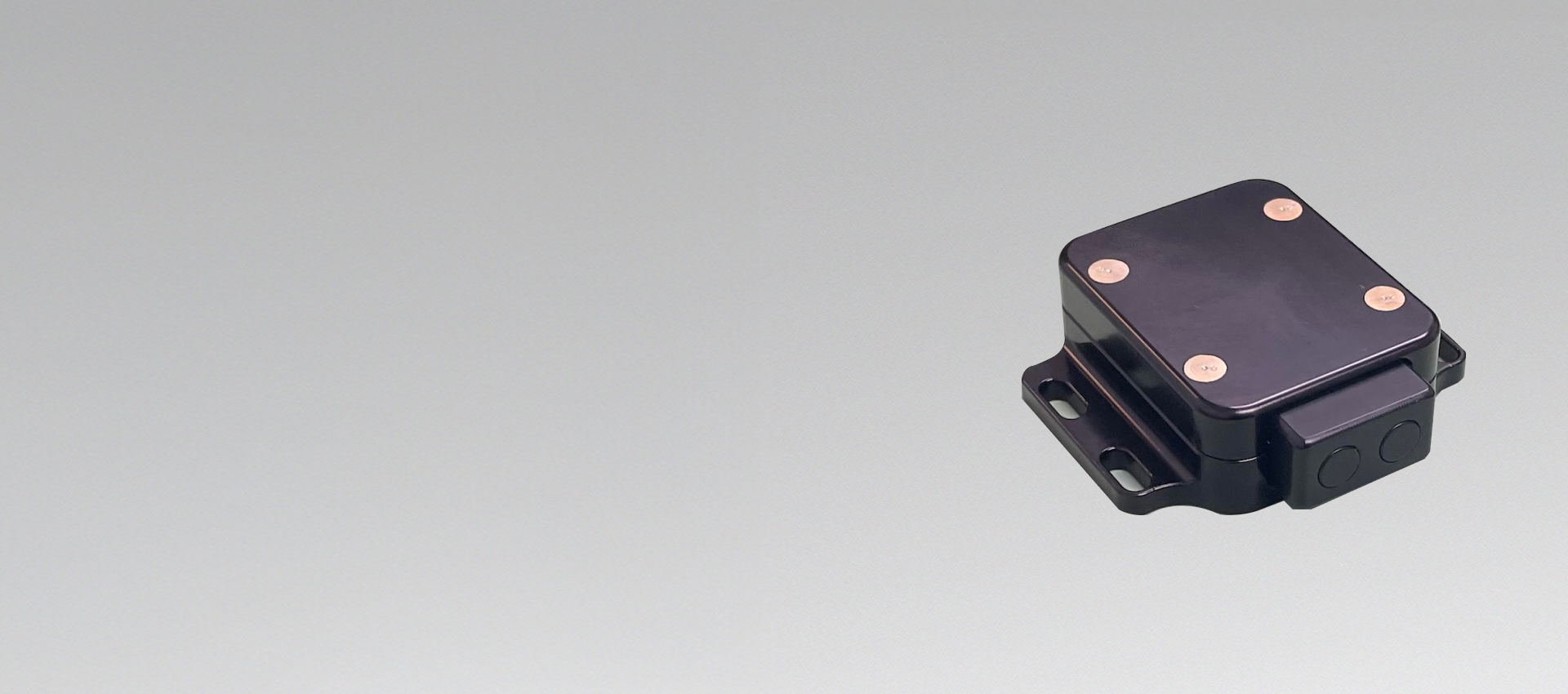

Magnetic Touch Latch (Large Door)
20125LP
Magnetic Touch Latch (Large Door)
20125LP
This magnetic touch latch is specifically designed for large doors, providing a secure and reliable closure with a 10 lbs opening force. It includes a strike plate for easy installation.
- 10 lbs force opens large doors
- 1-1/4” bolt extension
- 2 mm travel required to release
- Black Anodizedd finish
- Spring force: 10 Lbs
- Magnetic pull: 6 Lbs
- Travel required to unlock: 0.08″ (2MM)
- Strike Plate Provided – Install using #6 flat head screw
- Use #6 pan head screws to fasten latch to structure
- * A stop-block or door-stop must be used.
- Locate 0.187″ forward of the latch, adjust latch location using fastener slots.
Saint Louis Designs now offers our customers the opportunity to modify our standard designs or develop new mechanisms to meet your hyperspecific requirements. Our manufacturing flexibility and prototyping capability provide our customers with extremely low volume opportunities, often resulting in prototyping project management with extremely quick turnaround.
Saint Louis Designs has improved its ability to accommodate our customers’ high volume production requirements for with greater reliability, quality, and flexibility. Access to 65+ design and manufacturing engineers and over 650,000 square feet of manufacturing floorspace provide our customers with the assurance that SLD can deliver the highest quality hidden hardware and precision mechanisms at scale.
