Concealed Hinge, Spring Loaded, Adjustable SH105-EX-A-OPEN

Spring-Loaded Concealed Hinge

SH105-EX-A

Spring-Loaded Concealed Hinge

SH105-EX-A

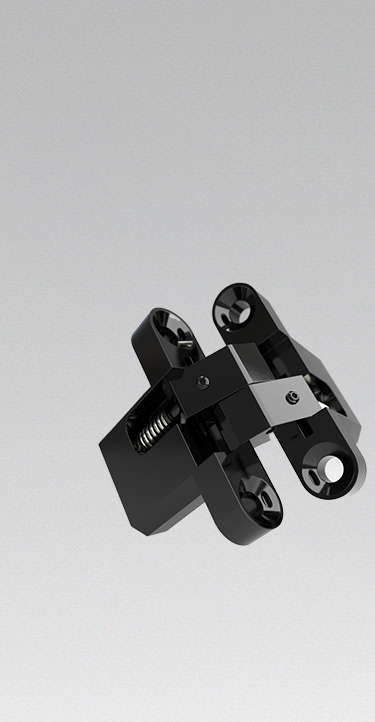

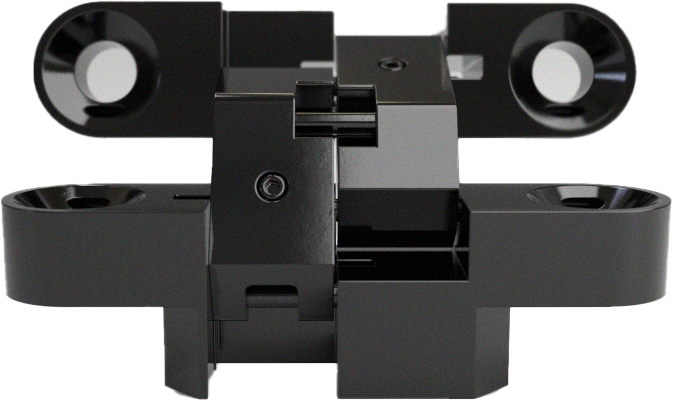

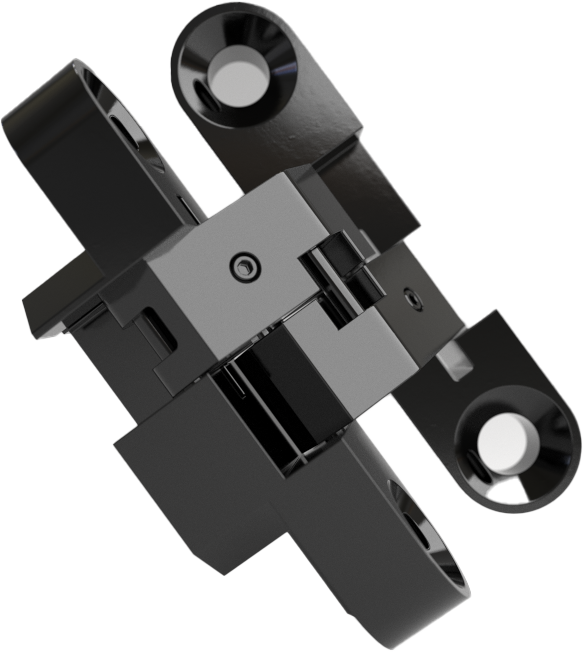

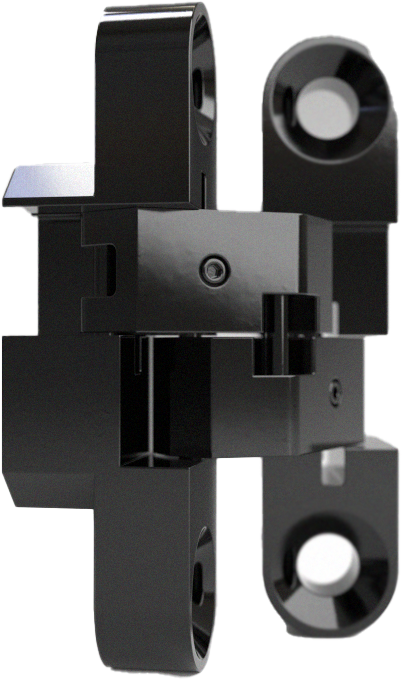

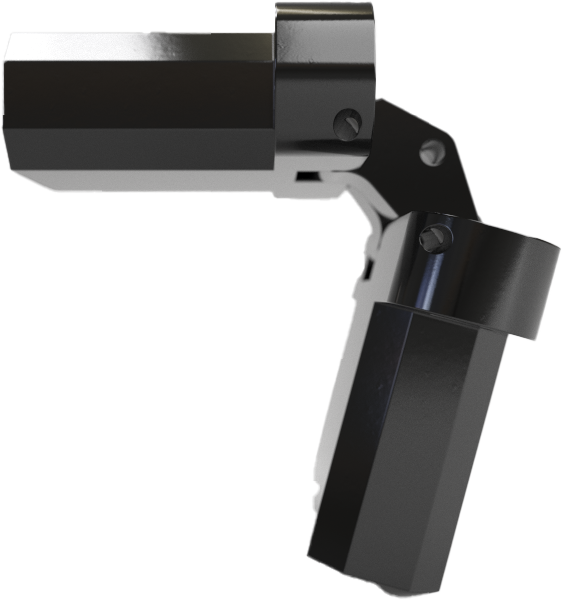

This spring-loaded concealed hinge features limited travel and adjustability. It uses #4 compression springs for added strength and can be adjusted with set screws to reduce the opening angle. It’s also gapped for use with a touch latch.

Material: 7075-T651, QQ-A-225/9
Finish:
- Standard Finish: Black Anodized
- Optional Finish: Clear Anodized

Spring loaded, limited travel
Adjustable
#4 compression springs for added strength
Tighten set screws to reduce open angle
Black Anodizedd 7075 aluminum

Use with lightweight panels only.
Do not open panel greater than the adjusted travel.
Install using nas514p832 screw (4x) or equiv.
Maximum open angle 105 degrees.
Max range of adjustment: 75 to 105 degrees.
Use 0.035″” hex driver to reduce open angle.
Minimum panel thickness 0.50″
