- Material: 7075-T651, QQ-A-225/8
- Finish:
- Standard Finish: Black Anodized
- Optional Finish: Clear Anodized
Limited Travel Adjustable
H105-A
Limited Travel Adjustable
H105-A

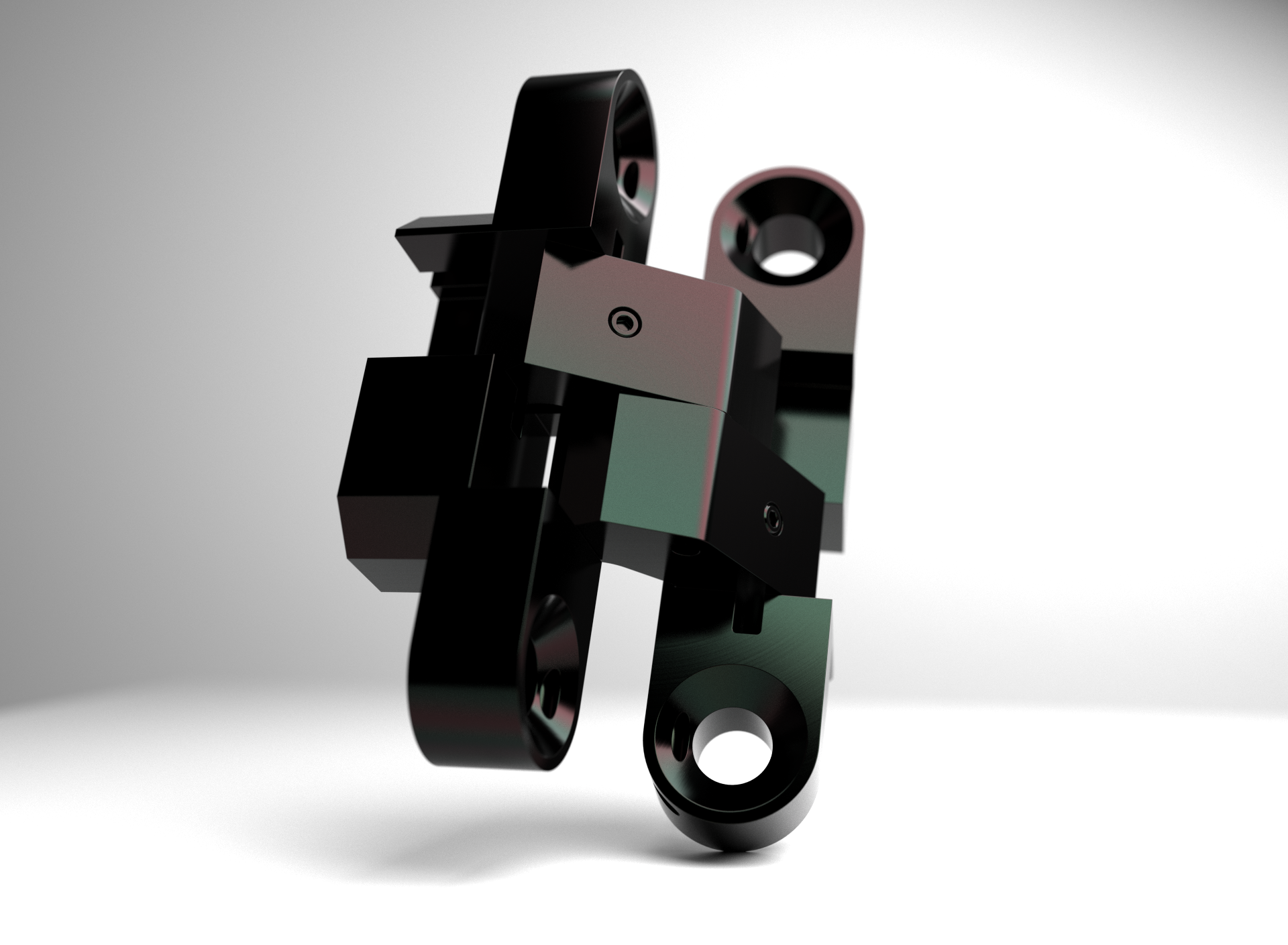

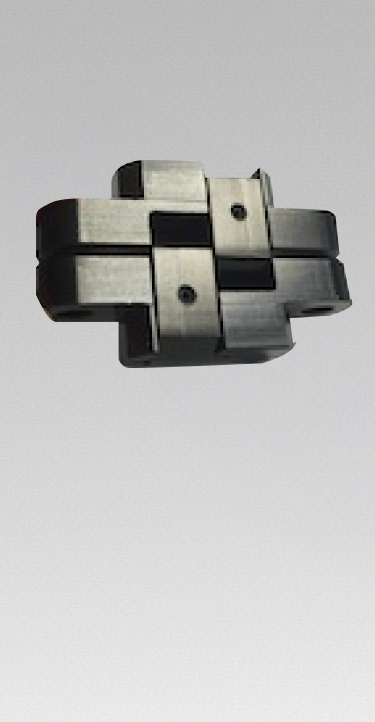

This hinge (1001G style) features limited travel and can be adjusted with set screws to limit the opening angle.
- 1001G style hinge with limited travel
- Adjust set screws to limit opening
- Black Anodizedd 7075 aluminum
- Install using nas514p832 screw (4x) or equiv.
- Use 0.035″” hex driver to reduce open angle.
- Minimum panel thickness 0.50″
Saint Louis Designs now offers our customers the opportunity to modify our standard designs or develop new mechanisms to meet your hyperspecific requirements. Our manufacturing flexibility and prototyping capability provide our customers with extremely low volume opportunities, often resulting in prototyping project management with extremely quick turnaround.
Saint Louis Designs has improved its ability to accommodate our customers’ high volume production requirements for with greater reliability, quality, and flexibility. Access to 65+ design and manufacturing engineers and over 650,000 square feet of manufacturing floorspace provide our customers with the assurance that SLD can deliver the highest quality hidden hardware and precision mechanisms at scale.
Min. Panel Thickness
0.50"
Modifiable Precision Hinges
Limited Travel Adjustable
Adjustable hinge with limited travel for precise positioning and controlled movement.
