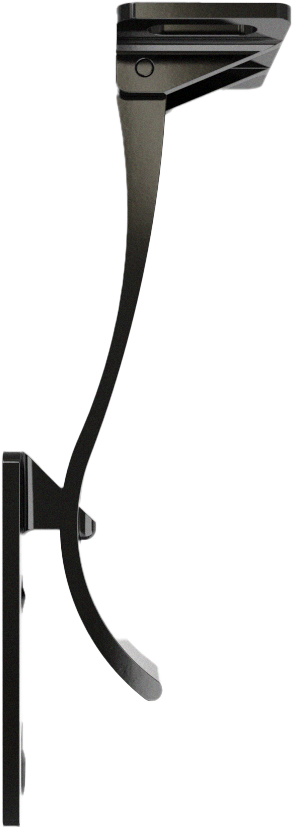

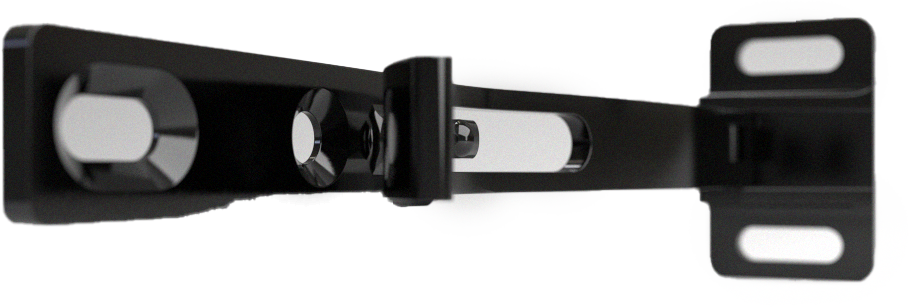

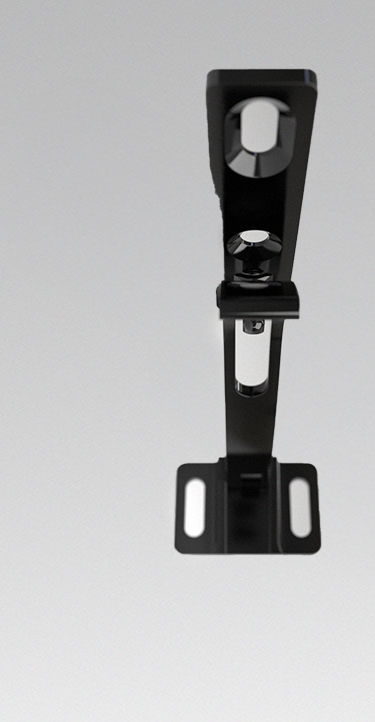

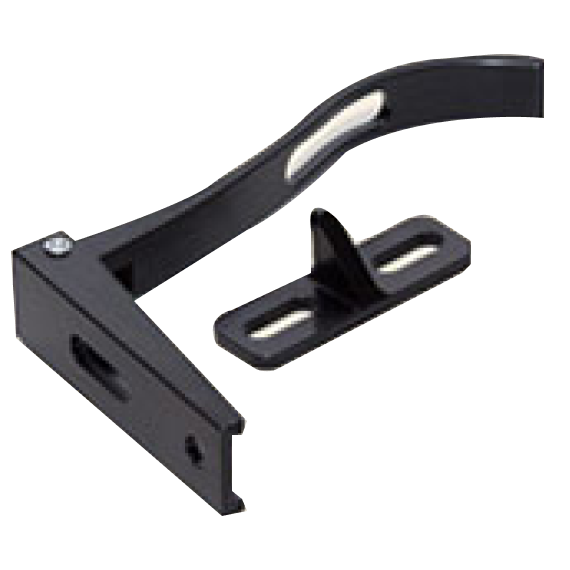

SC1060 Secondary Spring Catch with Inline Strike

Secondary Spring Catch (Inline)

SC1060

Secondary Spring Catch (Inline)

SC1060

This secondary spring catch is designed for use in doors and drawers, providing a secure and reliable closure. It installs flush with the drawer edge for a clean and streamlined appearance and is available in black or clear anodized finishes, as well as custom plating options to match your design.

Material: Al 6061-T6 QQ-A-200/8, QQ-A-200/16 or ASTMB-221, QQ-A-250/11 or ASTMB-209
Finish: Black Anodized, MIL-A-8625F, TYPE 2, CLASS 2

495 lbs static load
Installs flush with drawer edge
Black or clear anodized or custom plated finish

Vertical or horizontal installation.
Use nas602 or equiv. screw to attach lever.
Use nas514-832 or equiv. screw to attach strike.
